ICAM ​SILO² Vertical Lift Module

The SILO² is a multi-column vertical lift module (VLM) for small and medium-sized items.

SILO² is the multi-column vertical lift system designed for intensive storage of various types of items, including those with a very high specific weight. Its modular design enables it to adapt to any space requirement, saving up to 90% of surface area compared to traditional racking systems. Completely re-developed according to the latest technological standards, it is now available in two versions, ECO and FAST

Download Brochure YouTube Video

Key Features and Benefits

  • From 2 to 7 storage columns
  • Multiple access openings for faster picking
  • Available in two versions: SILO² ECO & SILO² FAST
  • Integrate with IRIDE, our innovative, interactive, multimedia control system
  • Wide range of trays whose load capacity can be adapted to the actual load (113 to 1001 kg/sq m)
  • Anti-seismic design, for installation indoors or outdoors.

Technical Specifications

TRAY
Useful width

653 to 2053 mm
Useful depth

612 / 707 / 802 / 897 / 1003 / 1098 / 1193 / 1288 mm

Note: The 1288 mm depth is available only for machines up to 5.5 m wide.
Height

41 mm
Maximum loading height

675 mm
Incremental positioning pitch

50 mm (Fixed and Automatic configuration)
Minimum tray spacing

100mm

STORAGE SYSTEM
Maximum load capacity per column

70 T
Width

2167 to 7217 mm
Depth

2433 to 4479 mm
Height

2800 to 15000 mm
No. of columns

2 to 7
Height increment

100 mm
Working temperatures

0 to 40°C
Relative humidity

50 to 85%

Note: On request, the system can be equipped with components designed to withstand climatic conditions beyond the stated limit.

VERSIONS (ECO vs FAST)
No. of trays per hour

ECO: 53 to 75

FAST: 72 to 87
Installed power

ECO: 11kW

FAST: 14kW

Need something more custom?

Let us help you find the right solution.

Chat to one of our experts

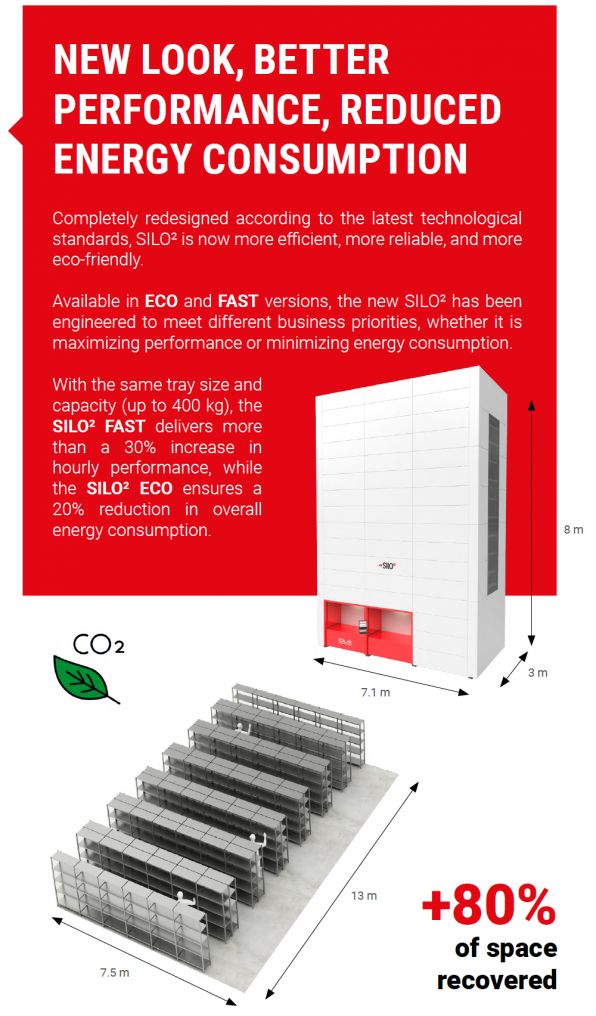

Silo2 1000X1704

A CUSTOM-MADE STORAGE SYSTEM, WITH OVER ONE BILLION POSSIBLE CONFIGURATIONS, AS STANDARD.

SILO² is a vertical storage system with shifting trays, which operates according to the “goods-to-person” picking principle.

The internal handling system operates along three axes (vertical Y, horizontal X, and tray handling Z) to transport the tray to the picking/refilling station, where the operator safely performs picking or refilling operations.

Thanks to its modular design, SILO² can be configured with 2 to 7 storage columns, reaching heights of up to 15 meters, and can adapt to any installation environment (low ceilings, underground spaces, multi-level layouts or complex configurations), even outdoors.

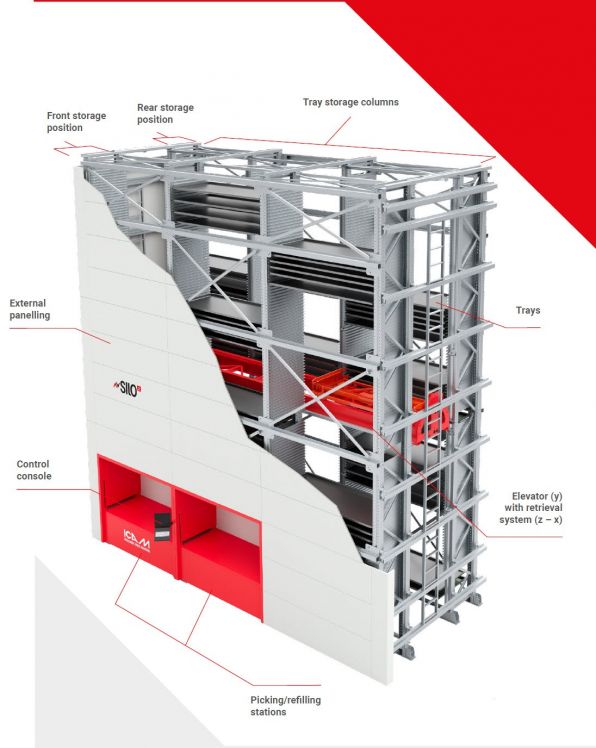

Silo2 Modular Flexible Reliable Structure

A MODULAR, FLEXIBLE, RELIABLE STRUCTURE

SILO² consists of shifting trays stacked on two opposing storage columns with a central elevator, equipped with an automated retrieval system that picks and releases the trays in the picking/refilling station, then repositions them inside the structure once the operation is completed.

Operation of the SILO² storage system can be accomplished using an incorporated PC, located adjacent to the picking/refilling station, or via any mobile device on which the ICAM ICON vertical lift modules management software has been installed.

Multi-ray photoelectric light curtains and an automatic shutter door allow the warehouse operator to work in complete safety during handling operations at the picking/refilling station.

Emergency push buttons on the front of the storage system enable the machine to be stopped immediately at any time.

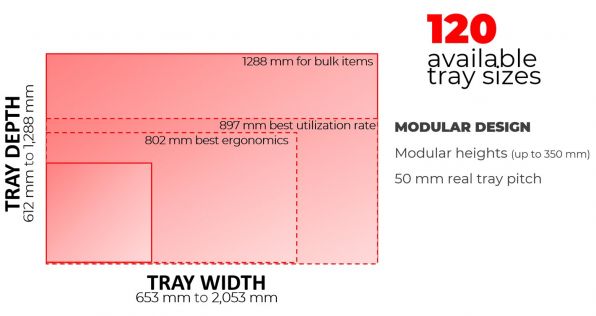

Silo2 Vlm 120 Tray Sizes 2

THE RIGHT TRAY TO SUIT ANY NEED

The various load capacities, the 120 available tray sizes, and the wide range of internal division accessories (side extensions, removable dividers, containers) enable the management of various types of items, including those with a very high specific weight (from 113 to 1,001 kg/m²), a feature that sets SILO² apart from single-column storage systems.

Additionally, the correct allocation logic within the trays (based on product family, picking frequency, supplier, dimensions, etc.) allows the available space in SILO² to be fully utilized, while also reducing material access times.

The possibility of defining at the bidding stage the load capacity of the tray also ensures that SILO² VLMs are always suited to the customer’s actual load requirements, without unnecessary structural oversizing. In this way, SILO² is the ideal solution for the automatic storage of all types of products, from light materials such as plastics, clothing-accessories, pharmaceuticals, electronic components to much heavier ones like steel moulds, nuts and bolts and mechanical components, etc.

Within SILO2 it is possible to handle trays with fixed load heights (fixed configuration) or with variable height (automatic configuration).

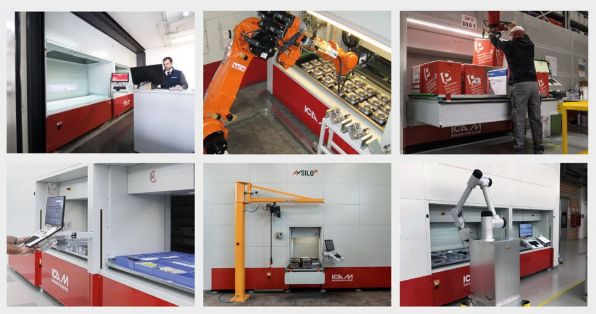

Silo2 Operational Continuity Flexibility 2

UNPRECEDENTED OPERATIONAL CONTINUITY AND FLEXIBILITY

Designed according to ergonomic and safety standards, the picking/refilling stations are available in both internal and telescopic versions to ensure accurate and safe picking and refilling of any type of item stored in the system.

The telescopic version, equipped with an automatic tray extraction system, is ideal for handling heavy or bulky materials that require the use of servo-assisted or automated systems (such as overhead cranes, pneumatic manipulators, anthropomorphic robots, etc.), reducing the risk of dangerous operations for staff.

Each SILO² can be equipped with 1 to 8 picking/refilling stations. The possibility of placing them side by side allows the operator to work without delays: while picking or refilling materials in one picking/refilling station, the handling system prepares the next mission in the adjacent picking/refilling station, reducing or eliminating waiting times.

The picking and refilling stations can be positioned on the same level, on different levels or on opposite sides. Fully-automatic picking and refilling stations to automate repetitive and less ergonomic tasks can be implemented with the help of collaborative robots.


Silo2 Icon Iride

PRECISION, EFFICIENCY AND PROFITABILITY, THROUGH INTELLIGENT STOCK MANAGEMENT

New standards of usability, accuracy and productivity are achieved with the available command and inventory control options.

Everything is under control with ICON. This web-based software, designed and developed entirely by ICAM, enables the management and control of the entire range of ICAM warehouse systems and much more.

Designed in accordance to the latest technological standards, ICON meets the storage and picking needs of the most important commercial and industrial sectors, providing greater flexibility of interface with the most popular WMS and ERP management software.

The PC is Microsoft Windows 10 embedded and equipped with a network interface, a software package developed by ICAM, and a database server program (SQL Server).

How ABC tray classification enhances SILO² efficiency

Not all trays are the same, and SILO² knows it.

With ABC logic, the most requested items are positioned in the most accessible zones, while low-rotation trays are placed farther from the picking and deposition bays.

A continuous optimization process, driven by the ICON software, constantly analyzes how to speed up picking times and reduce energy waste and unnecessary movements.

The result? Fewer movements, shorter waiting times, higher efficiency.

This is how SILO² becomes even smarter.

IRIDE - The advanced interactive pick-to-light system for ICAM automated storage systems

In the warehouse, every second counts. And every mistake has a cost.

Paper lists, trips to the PC, items to locate, codes to decode: every interruption slows operations down. Multiplied across hundreds of picks a day, the impact on the process is real and measurable.

IRIDE is the interactive control system integrated into ICAM automated storage systems. It's not a simple optional: it's the technology that brings light, data and commands together in one single point: right in front of the operator, at the picking and refilling station. No paper, no screens to check elsewhere, no trips to the PC.

The operator doesn't need to figure out what to do. They see it. And act.

💡 Guides: light beams point to the exact compartment. Zero searching, zero errors.

📊 Informs: item photo, quantity, description: all visible directly at the station, without looking away.

🎛️ Manages: confirm, edit, cancel operations without ever leaving the picking and refilling station. No PC checks needed.

🎨 Accelerates: color-coded picks and deposits to handle multiple orders at once.

🔆 Signals: integrated lighting and notifications at the picking and refilling station.

⚖️ Alerts: real-time load imbalance detection. Zero machine downtime.

Consistent performance. With experienced operators or on day one.
