ICAM MAXI ᴸ Automated Vertical Storage For Long and Heavy Materials

ICAM MAXI ᴸ Automated Vertical Storage For Long and Heavy Materials

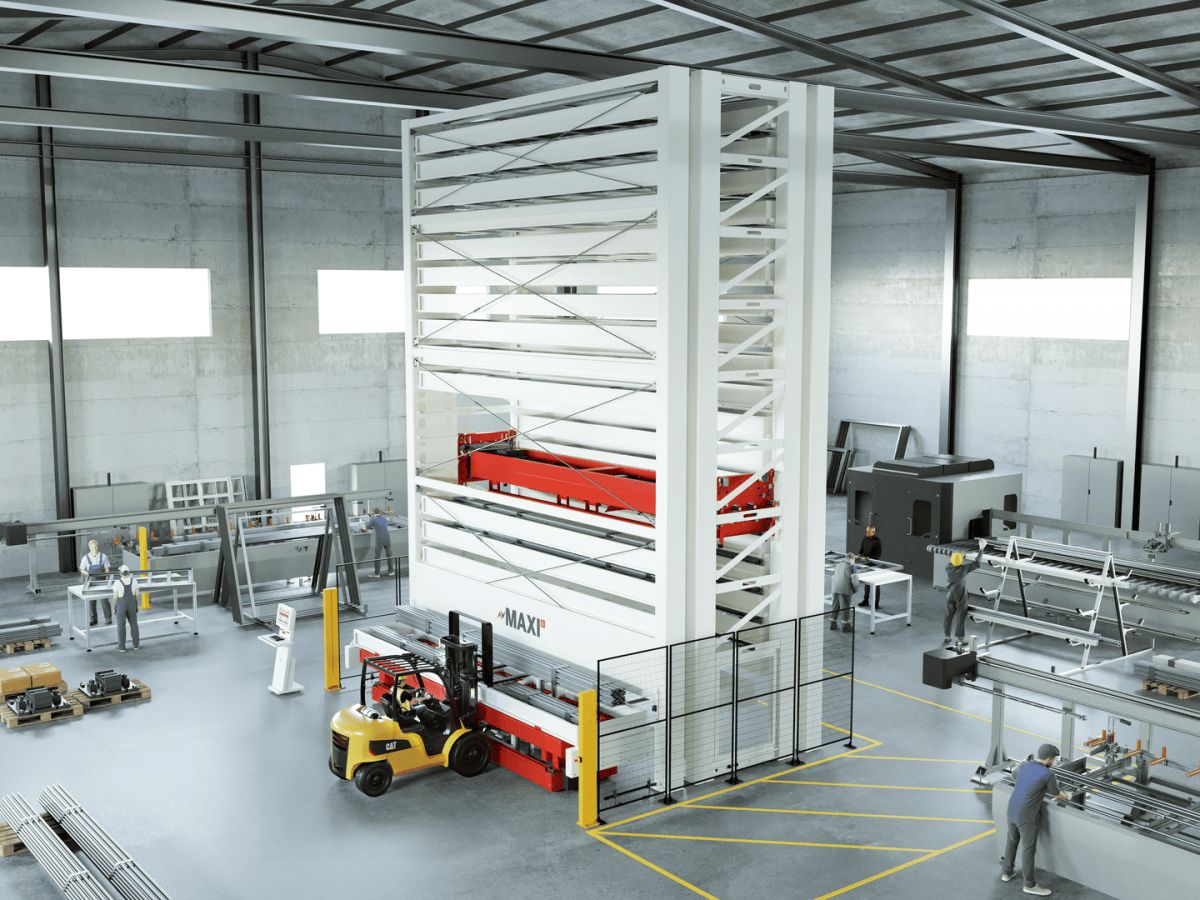

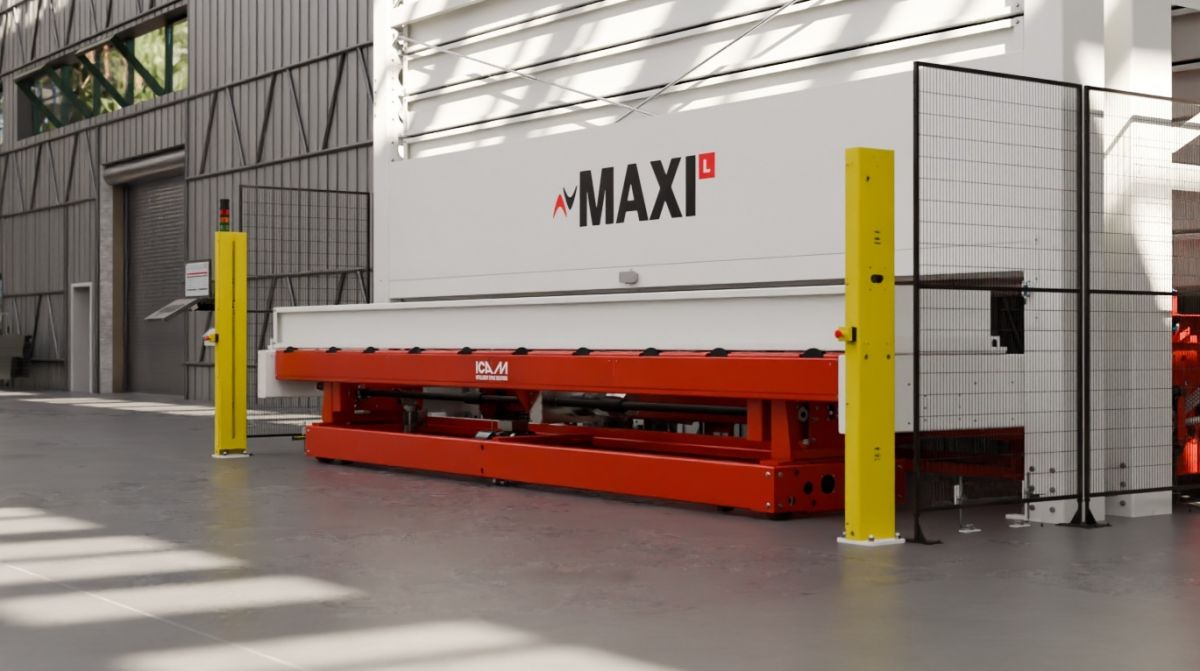

MAXI ᴸ is an automated vertical storage system for bars, profiles, semi-finished products, moulds or accessories. MAXI ᴸ allows materials to be stored in an orderly and protected way, reducing floor space occupation while improving accessibility, traceability and control.

Whether storing bars, profiles, semi-finished products, moulds or accessories, MAXI ᴸ ensures maximum protection of materials stored in the unit, while minimising floor footprint. Fully integrable into production flows, it enhances traceability, safety and accessibility across a wide range of industrial environments.

The MAXI ᴸ has long drawers (up to 7100mm) with load bearing capacities of 1000kg or 3000kg.
The structure is height-adjustable with 500mm incremental modules.
Access can be configured on all 4 sides, as well as on multiple levels.
Fixed unload/load stations or motorised shuttles with automatic load ejectors.

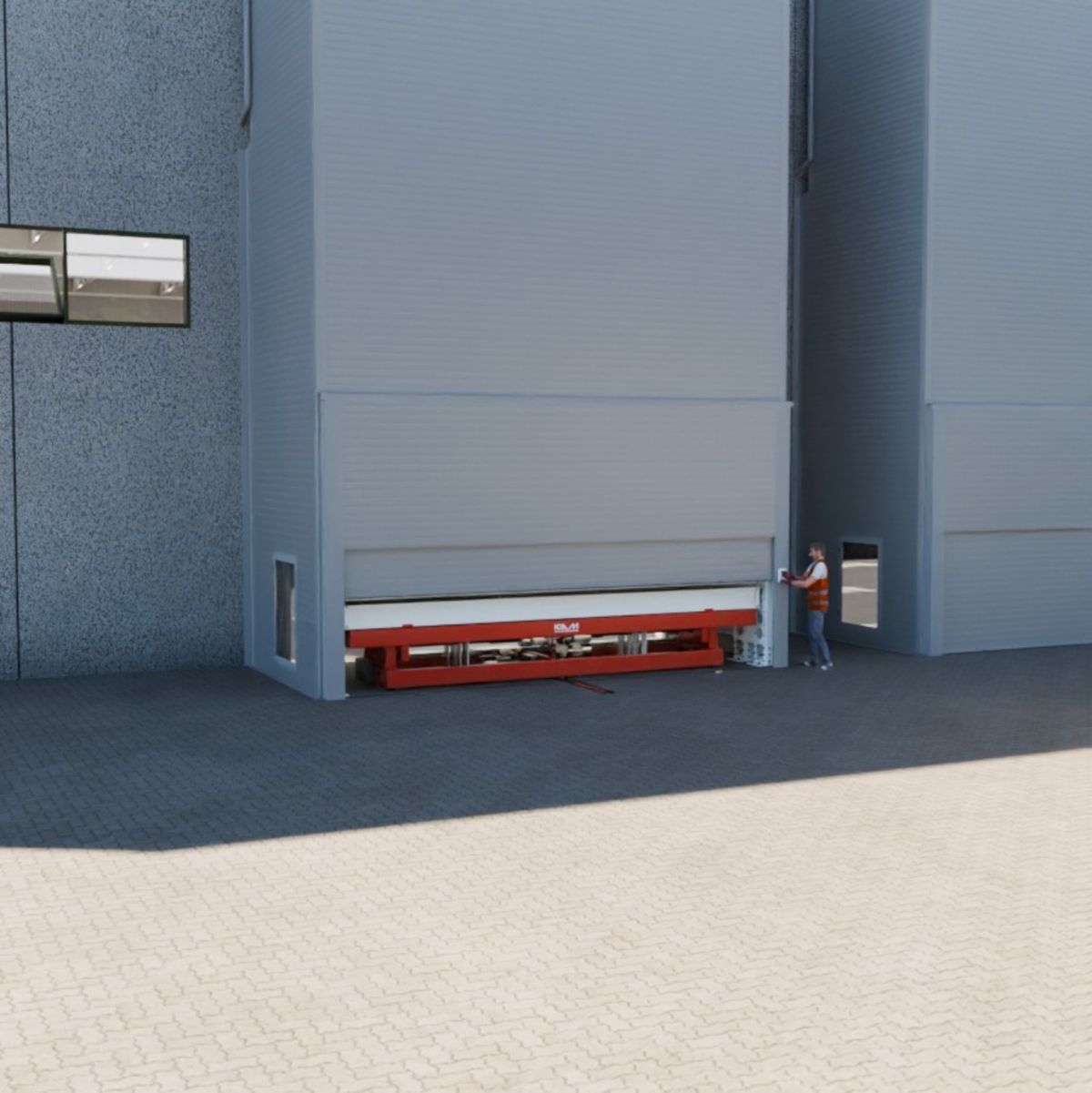

Available in both indoor and outdoor installation options.

MAXI ᴸ offers a single solution designed to adapt to different industries, ensuring structural strength and long-term reliability.

Download Brochure YouTube Video

Key Features and Benefits

The MAXI ᴸ has long drawers (up to 7100mm) with load bearing capacities of 1000kg or 3000kg.
The structure is height-adjustable with 500mm incremental modules.
Access can be configured on all 4 sides, as well as on multiple levels.
Fixed unload/load stations or motorised shuttles with automatic load ejectors.
Available in both indoor and outdoor installation options.

Technical Specifications

Max. drawer load bearing capacity	1000kg / 3000kg
Internal usable width	3,500 / 4,100 / 6,100 / 6,600 / 7,100 mm
Internal usable depth	820 ÷ 1520mm
Drawer edge height	200 ÷ 500mm (the 500mm height isn't compatible with ejectors)

Need something more custom?

Let us help you find the right solution.

Chat to one of our experts

Engineered to Last and Evolve

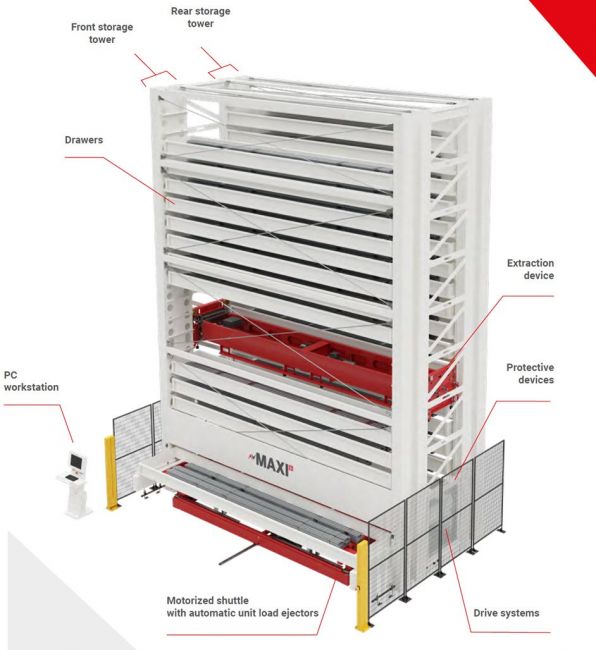

MAXI ᴸ consists of two opposing storage towers housing the drawers on internal guides.

At the centre, an automatic lift handles the transfer of drawers to the loading and unloading station.

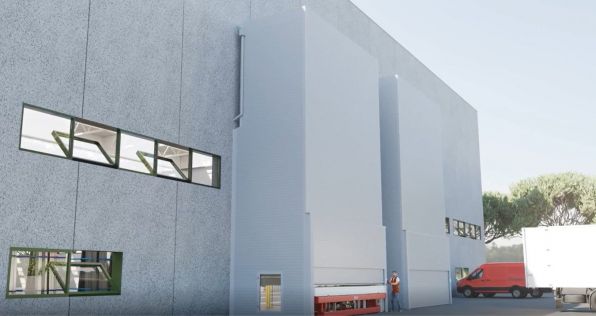

The structure is self-supporting, built in steel, and designed for both indoor and outdoor installations, with the possibility of future expansion.

MAXI ᴸ can be expanded vertically through modular extensions, turning the system into a long-term investment that supports your organisation's growth.

Maximum Configurability: Designed to Adapt, Integrate & Expand

MAXI ᴸ is designed to integrate seamlessly into any production environment, including complex industrial layouts.

The structure can be expanded vertically through 500mm modular extensions, supporting growing storage capacity and evolving operational needs.

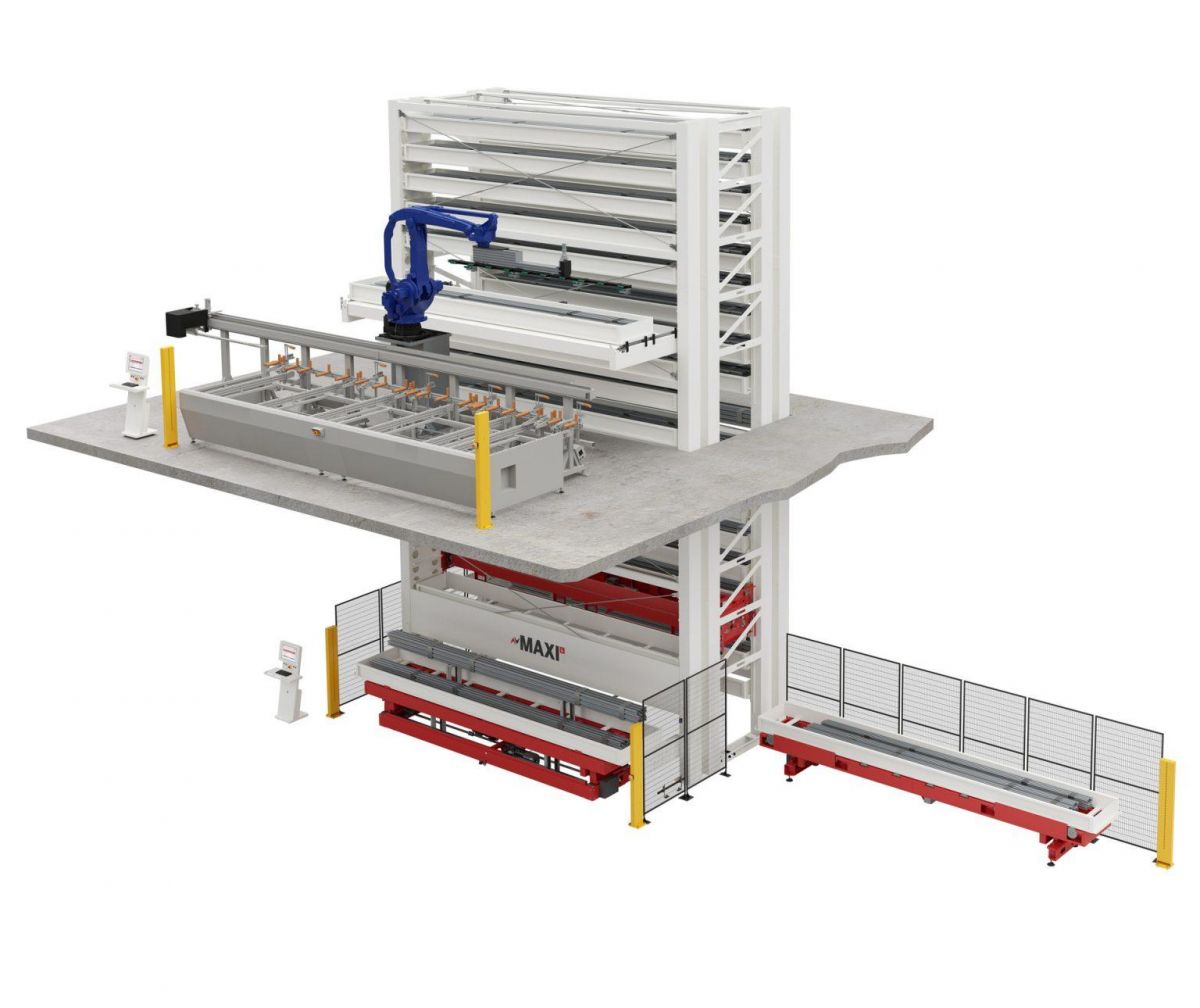

Configurable access is available on all 4 sides - including opposite and multi-level configurations. This enables efficient service to operators, automated production lines and robotic systems.

MAXI ᴸ is also suitable for indoor and outdoor installation, and can be configured as a standalone unit, in-line or in parallet.

Load & Unload Stations For Every Material Flow

MAXI ᴸ can be equipped for different types of load/unload stations, depending on internal material flows and your required level of automation.

Fixed load/unload station: front &/or rear configuration. A simple and reliable solution for material loading and unloading operations.

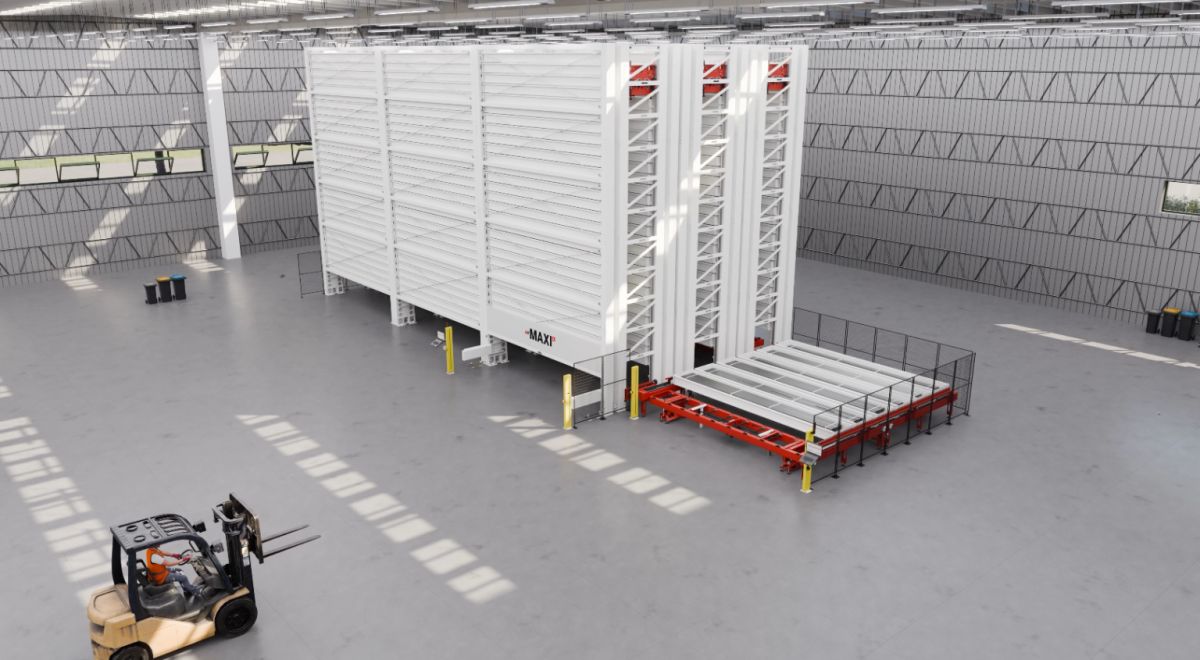

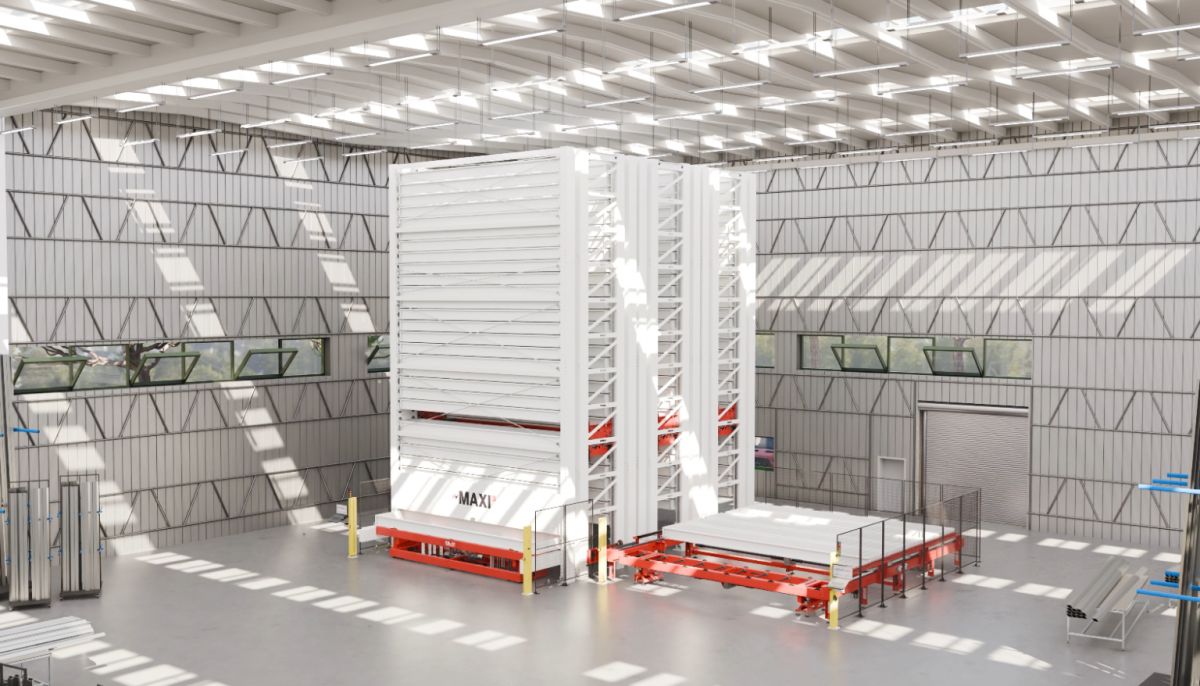

Motorised shuttle: reduces the loading area footprint and transfers trays in multiple directions, enabling each integration with different machines.

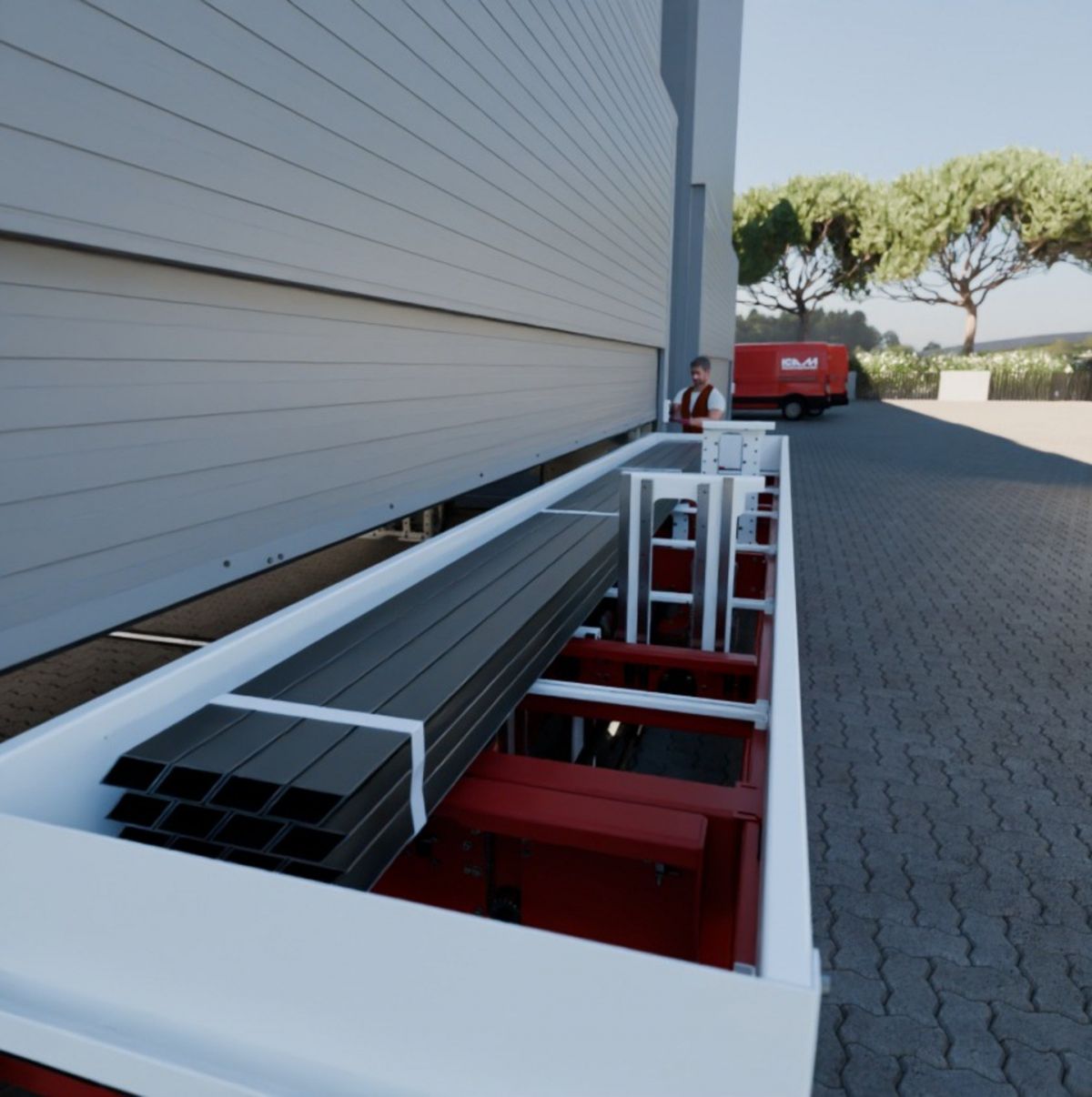

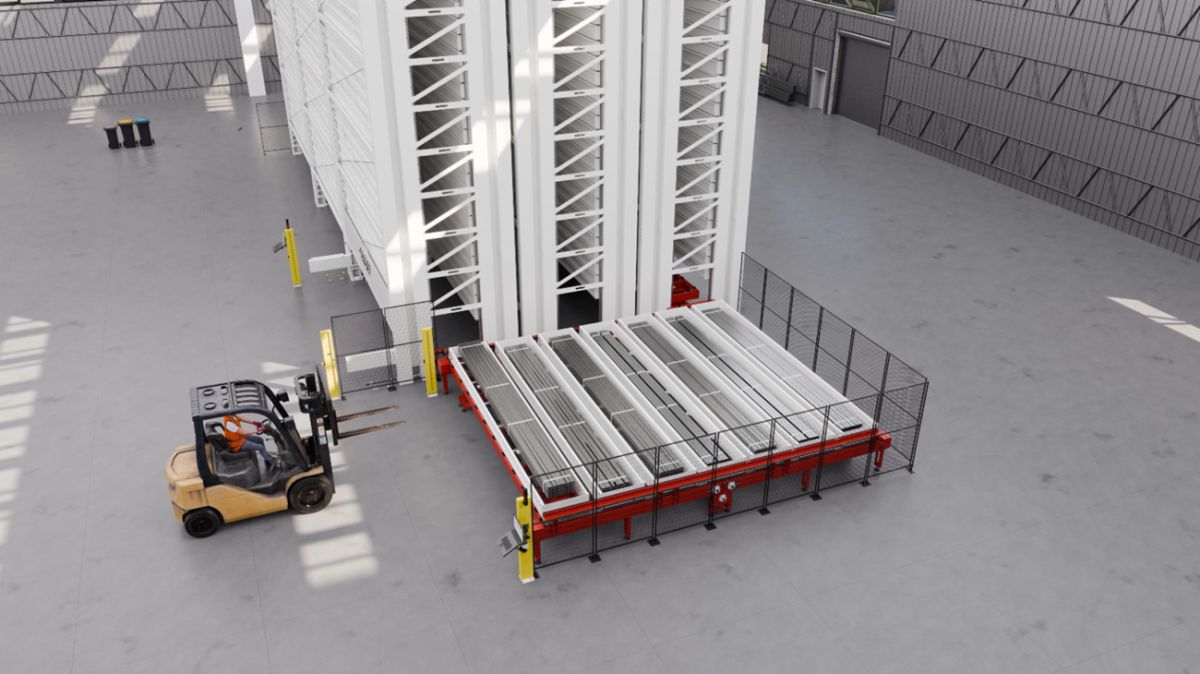

Automatic load ejectors: facilitate material loading into trays when using forklifts.

The combination of these devices increases overall system efficiency, allowing layouts to be tailored to specific operational requirements.

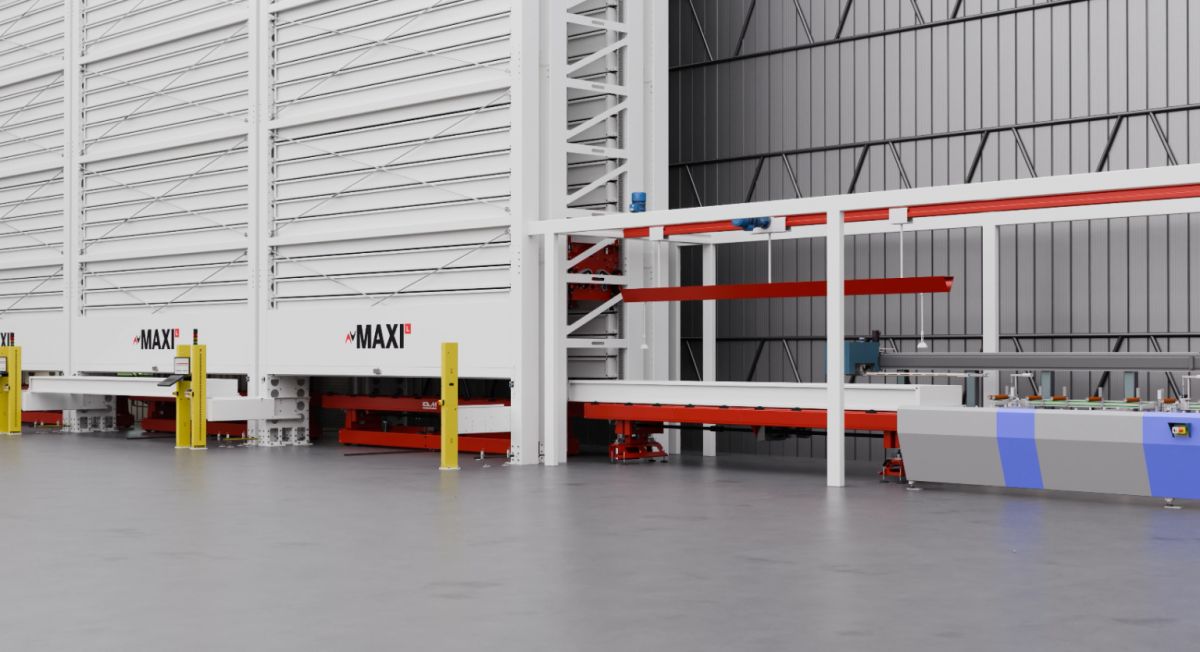

MAXI ᴸ integrates naturally into production workflows, supporting just-in-time logic and directly supplying:

Cutting centres and CNC machines
Presses and punching machines
Assembly lines
Anthropomorphic and Cartesian robots

ICON: The Digital Intelligence Driving MAXI ᴸ

ICON is ICAM's proprietary software developed for advanced management of its automated storage systems.

Web-based, intuitive and scalable, it provides full control over system functions and ensures seamless integration with your WMS (Warehouse Management System), ERP and other enterprise software.

Additionally, ICON enables floor area mapping and the management of stock stored outside the automated storage system.

Main Features:
