ICAM Compatta Mobile Racking

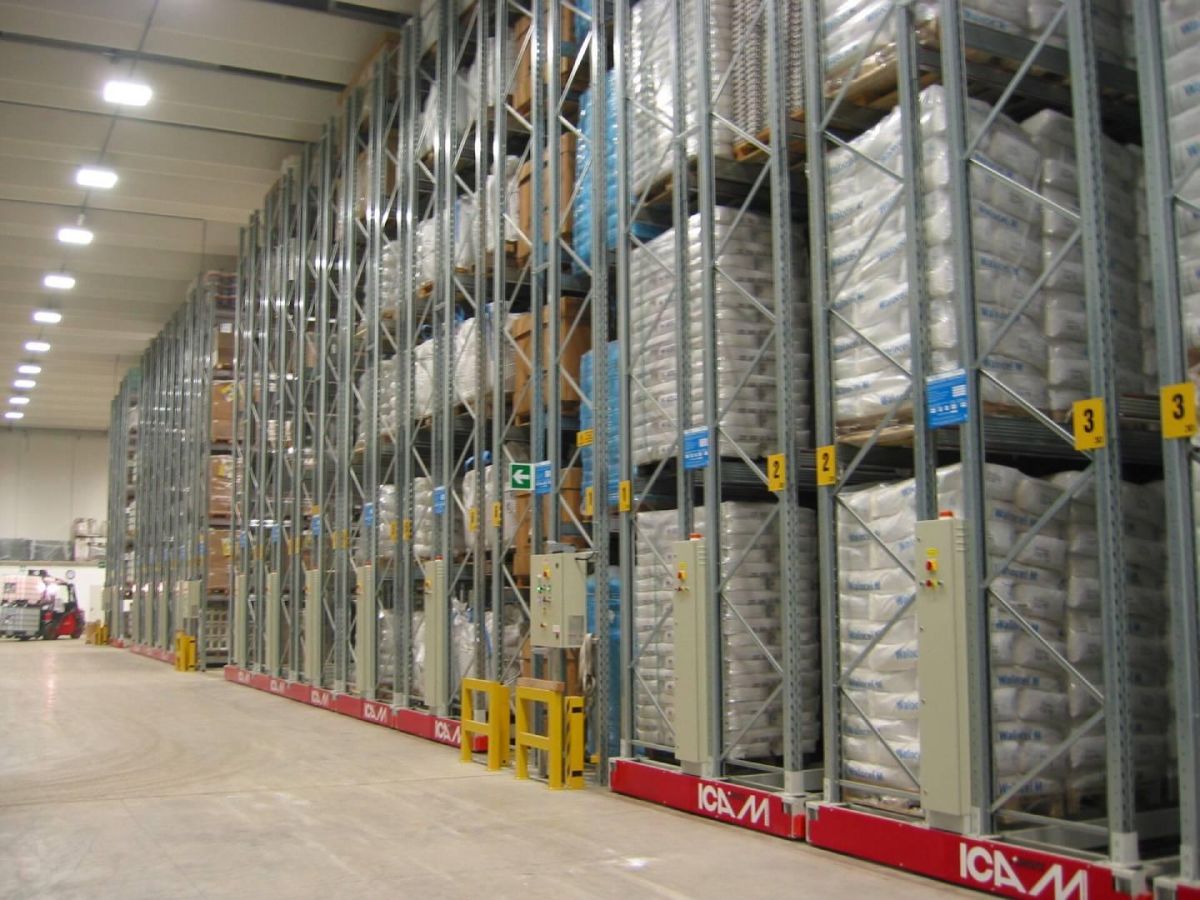

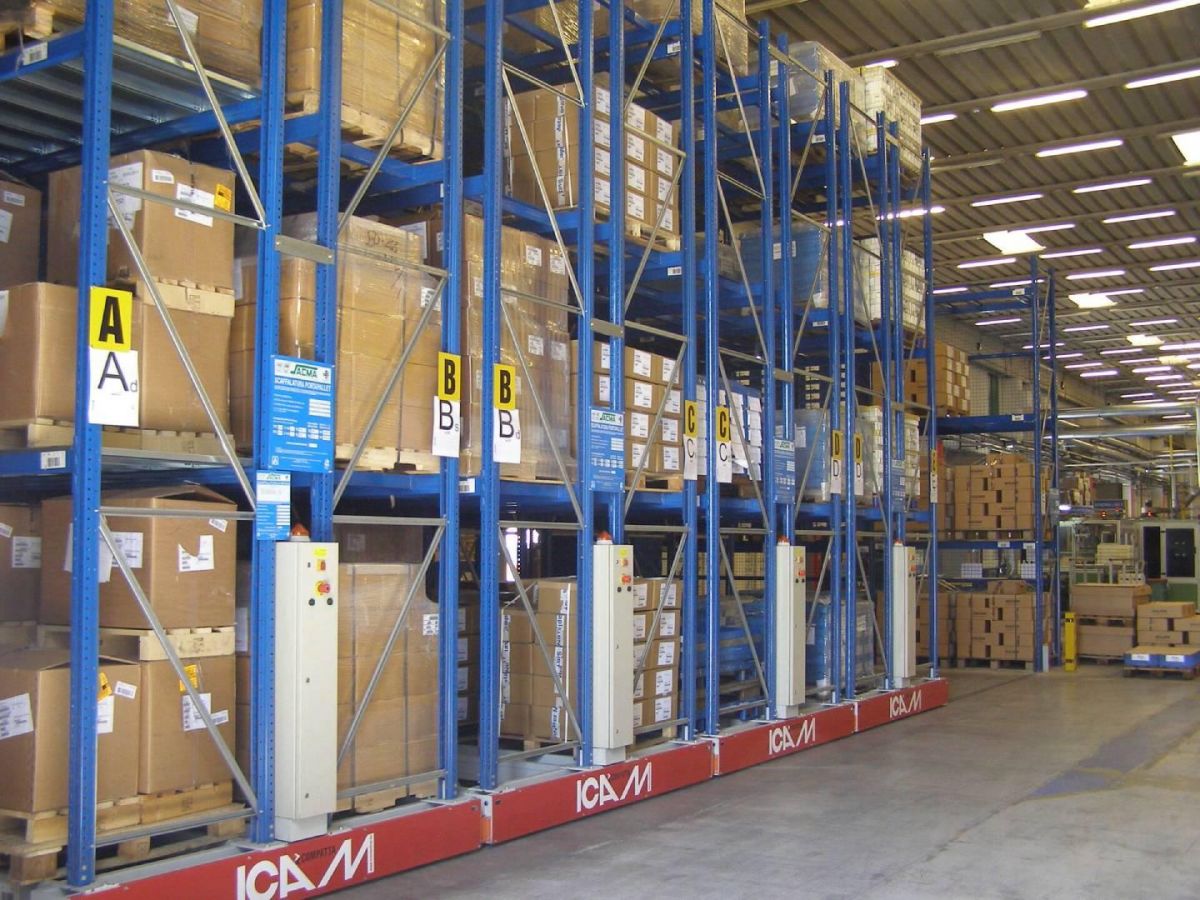

ICAM's Compatta range turns racking into high-density storage designed for heavy, long and bulky goods. Mounted on mobile bases that move along rails, Compatta creates a floating aisle that allows you to access your stored materials at just the desired location, and turns your empty aisles into additional storage capacity. Compatta is very similar in concept to Compactus-style mobile shelving, but is built to suit large sized storage solutions such as pallet racking, cantilever & multi-tier racking.

Download Brochure

Technical Specifications

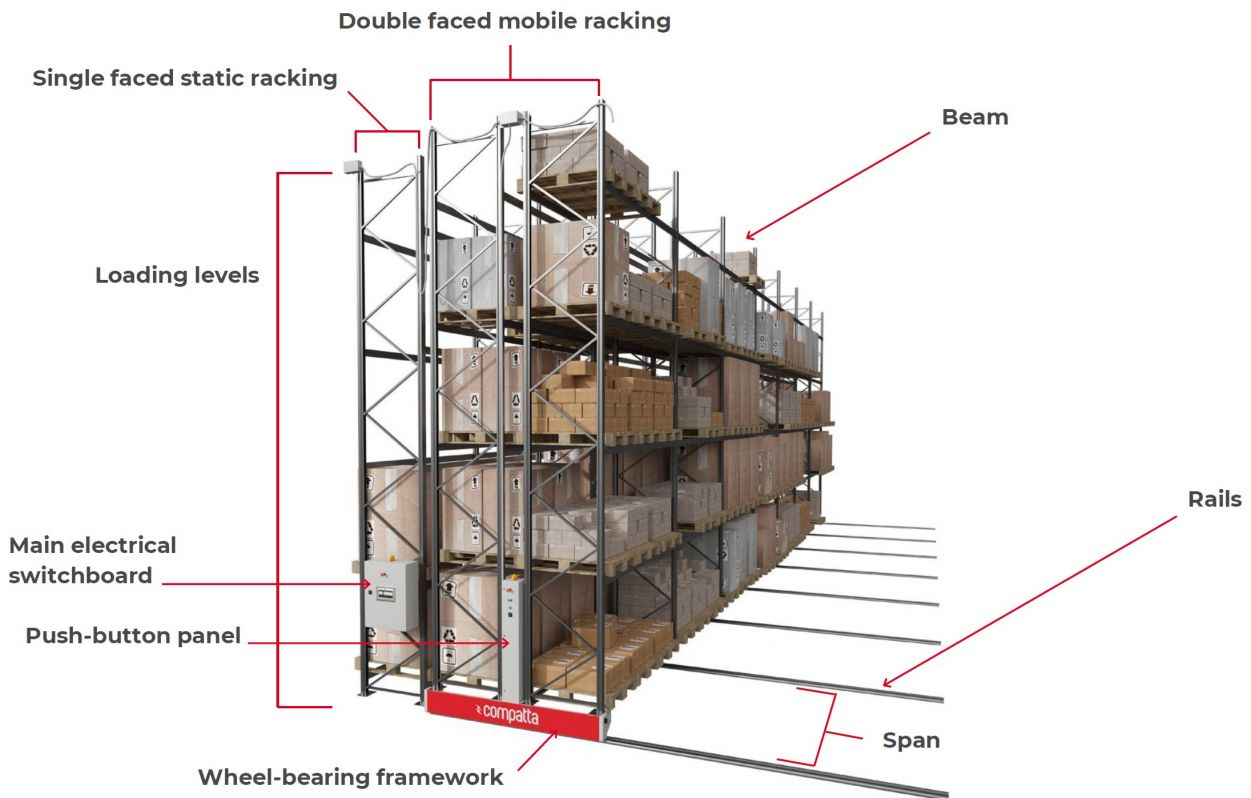

Mobile bases

COMPATTA mobile bases, available in 4 series (LB, MS, ML, MR) with 2- or 4-wheel configurations, cover load capacities from 400 up to 1,200 metric tons per base. Length is configurable from 2 to 75 meters, with translation speed up to 7.2 m/min. All series feature Burback A45 guide rails with Sendzimir galvanized finish as standard.

Racking

Any type of racking mounts onto COMPATTA mobile bases, pallet racking, cantilever, and multi-tier racking, new or already present in the warehouse. The first load level height is 310 mm for pallet bases, compatible with manual pallet trucks, and variable for cantilever bases depending on the column sizing.

System and control

A single main control panel manages up to 8 sub-systems, each consisting of a maximum of 24 aisles. The 10″ PC Panel operator panel and remote control allow aisle selection without leaving the forklift. ICON software handles monitoring, alarms, traceability, and native WMS/ERP integration.

Minimum length	2000 mm
Maximum length	75000 mm
First load level height	310 mm – pallet racking variable – cantilever racking
Translation speed	3.6 to 7.2 metres/min
Guide rail	Single groove (LB) Burback A45 (MS – ML – MR)
Corrosion protection	Sendzimir galvanizing
Operating temperature	down to -30 deg Celsius

Need something more custom?

Let us help you find the right solution.

Chat to one of our experts

COMPATTA - Mobile racking system for high-density storage of heavy, long and bulky loads

In traditional warehouses, half the floor space belongs to aisles. Not to inventory.

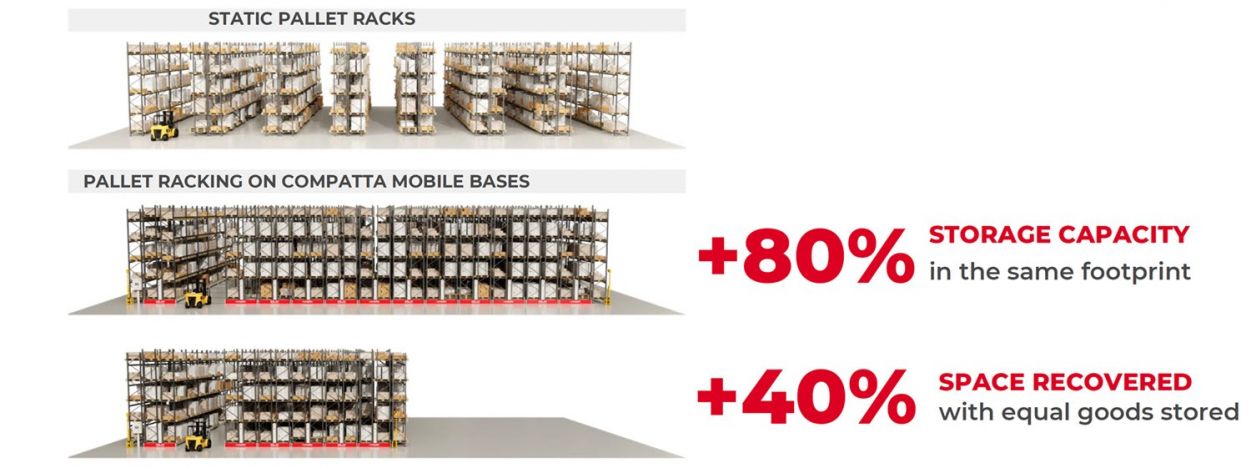

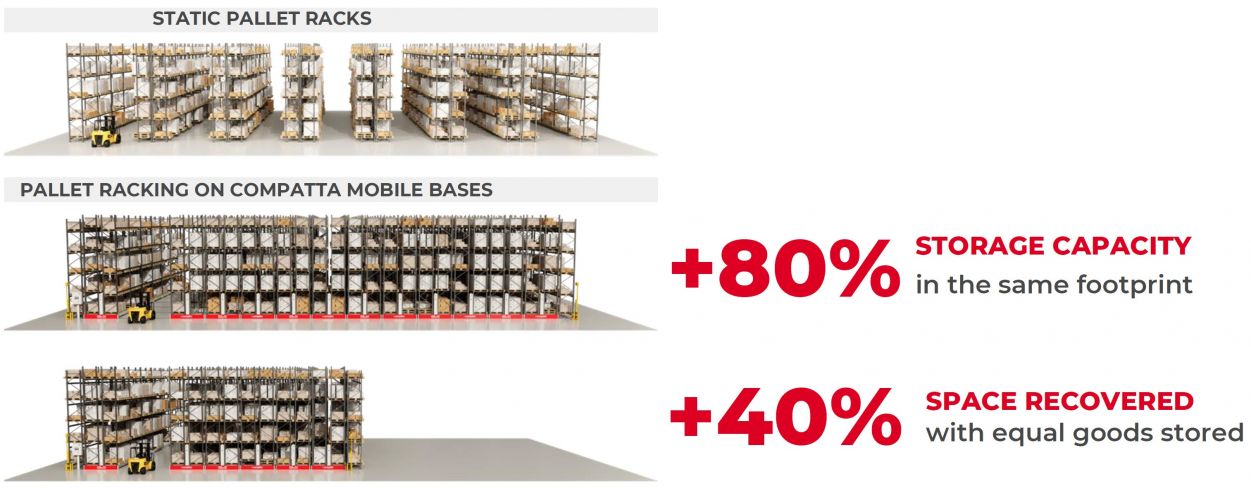

COMPATTA is ICAM's mobile racking system for high-density storage of heavy and bulky loads. Racking units slide on motorized bases and open a single access aisle only where needed, only when needed. +40% floor space recovered with the same inventory. +80% storage capacity in the same footprint.

In this video, a full overview of the system.

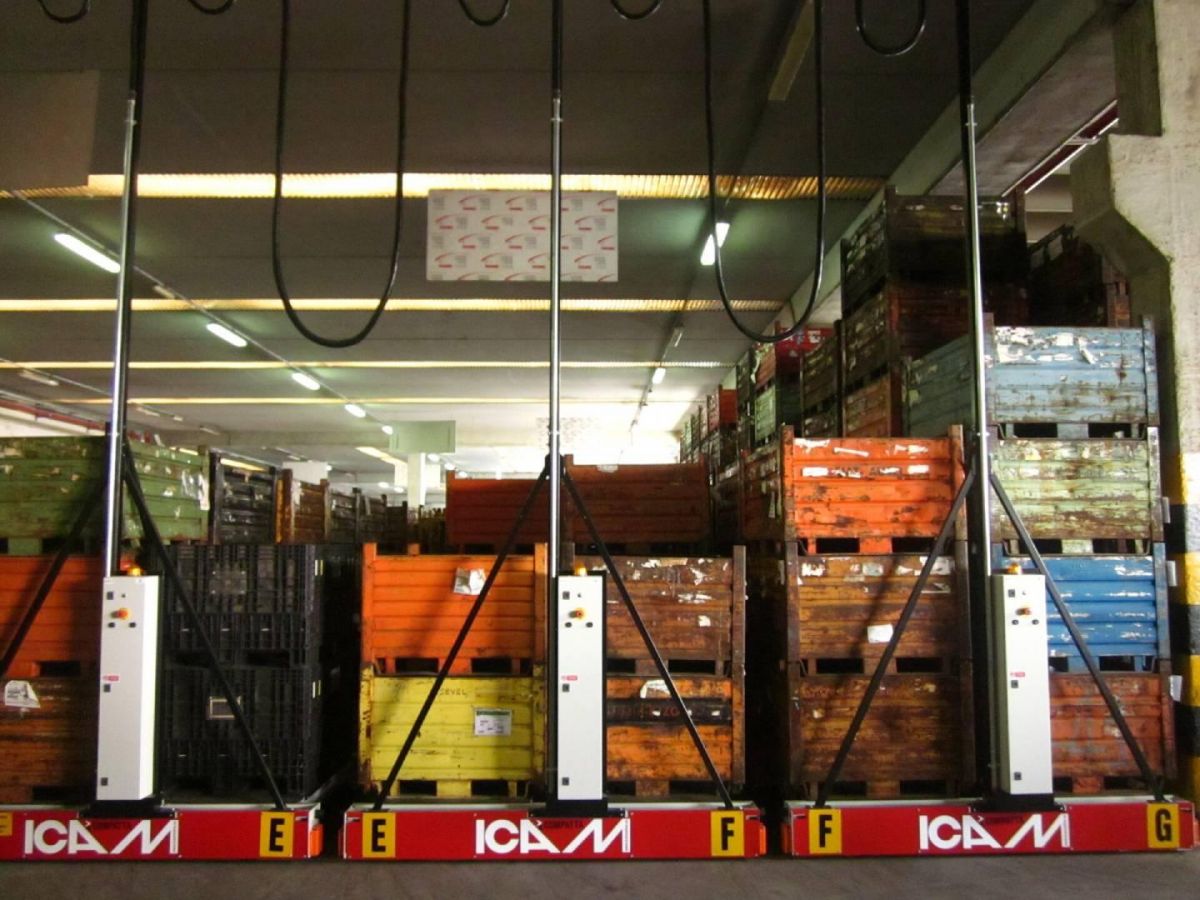

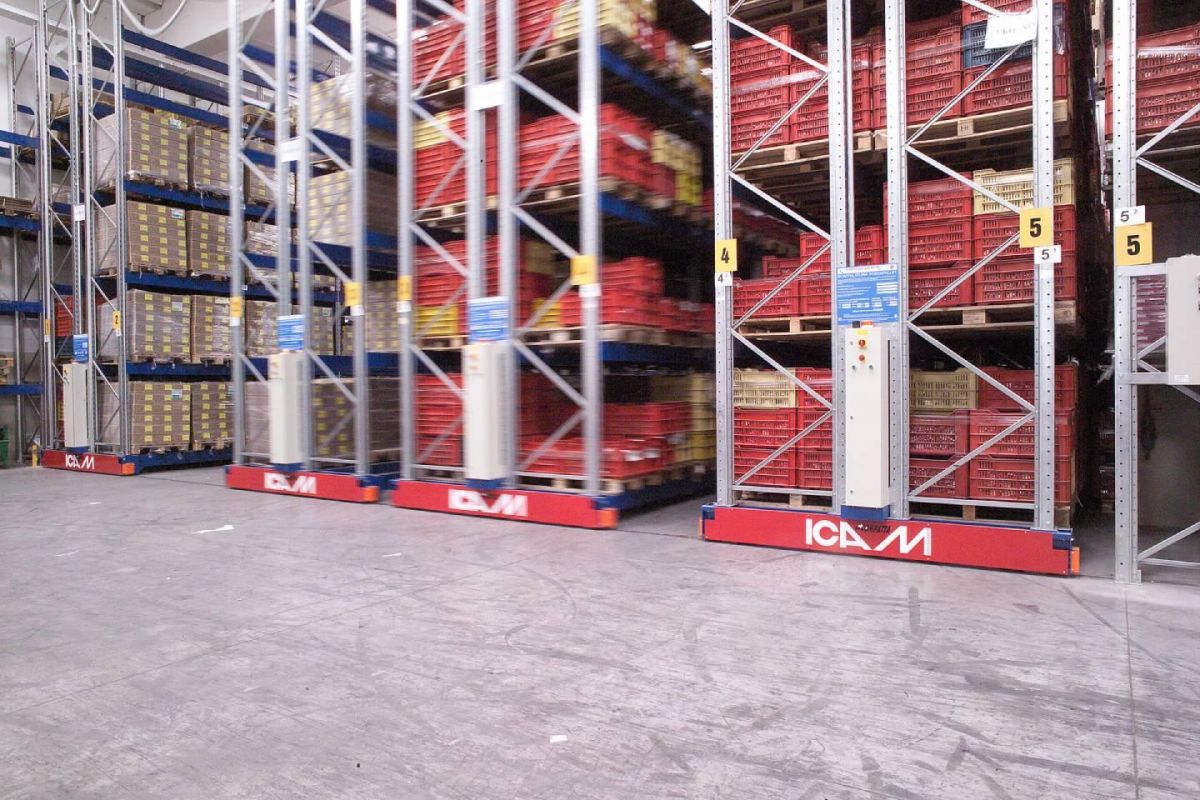

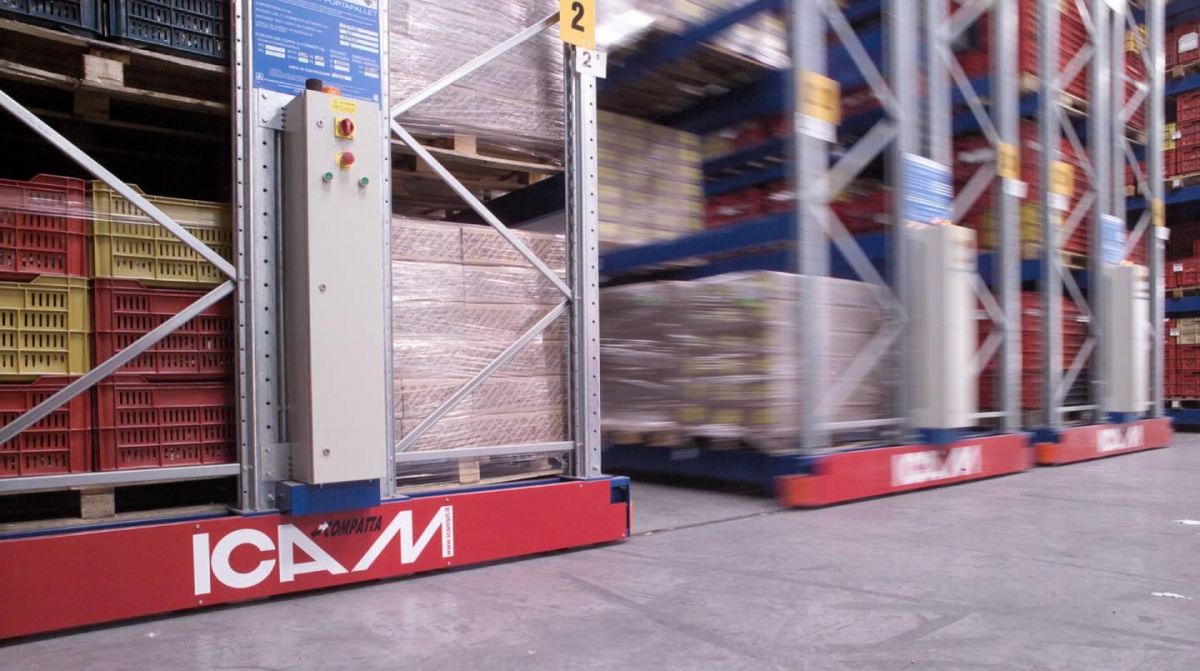

• Mobile bases on rails: racking units compact together, eliminating fixed aisles. One active aisle at a time, exactly where you need it. Up to 1,200 tons per mobile base, bases up to 75 meters long.

• Cold storage down to -30°C: reducing dead air space maintains uniform temperature and cuts energy consumption. Same inventory, less volume to refrigerate.

• Compatible with existing racking: pallet racking, cantilever racking systems. The structures already in your warehouse gain new value.

• AGV integration: designed to work alongside autonomous guided vehicles for fully automated material handling and flow optimization.

• Remote control and FLOW: the aisle opens without the operator leaving the forklift. FLOW detects passing vehicles and prevents base movement until the area is clear. Maximum ergonomics, zero operational risk.

• ICON: integrated management, traceability and reporting. Native WMS and ERP integration.

Full Versatility With No Trade-Offs

Adaptability to any type of racking, new or pre-existing Compatta stands out for its exceptional adaptability to all types of racking.

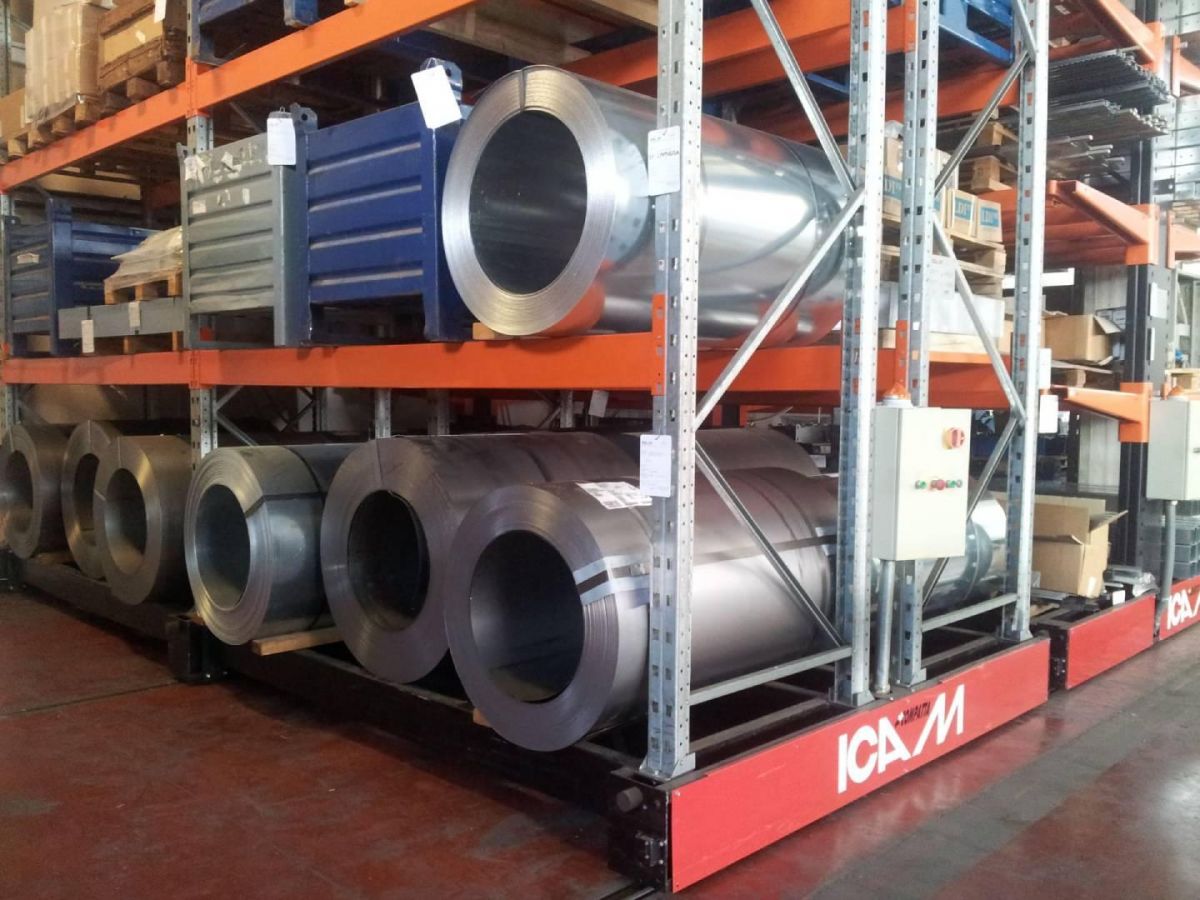

Whether it’s pallet racks, cantilever racks, or shelving systems, and regardless of the product to be stored (bins, coils, small parts, profiles, rolls, spools, or loose materials), Compatta is the ideal solution. It allows for the reuse of existing structures, transforming fixed installations into mobile racking systems.

Existing warehouse racks can be utilized seamlessly.

Suitable For Any Operating Environment

Optimizing space by reducing aisles.

This system, applicable in any industry, is designed to adapt to any operational environment.

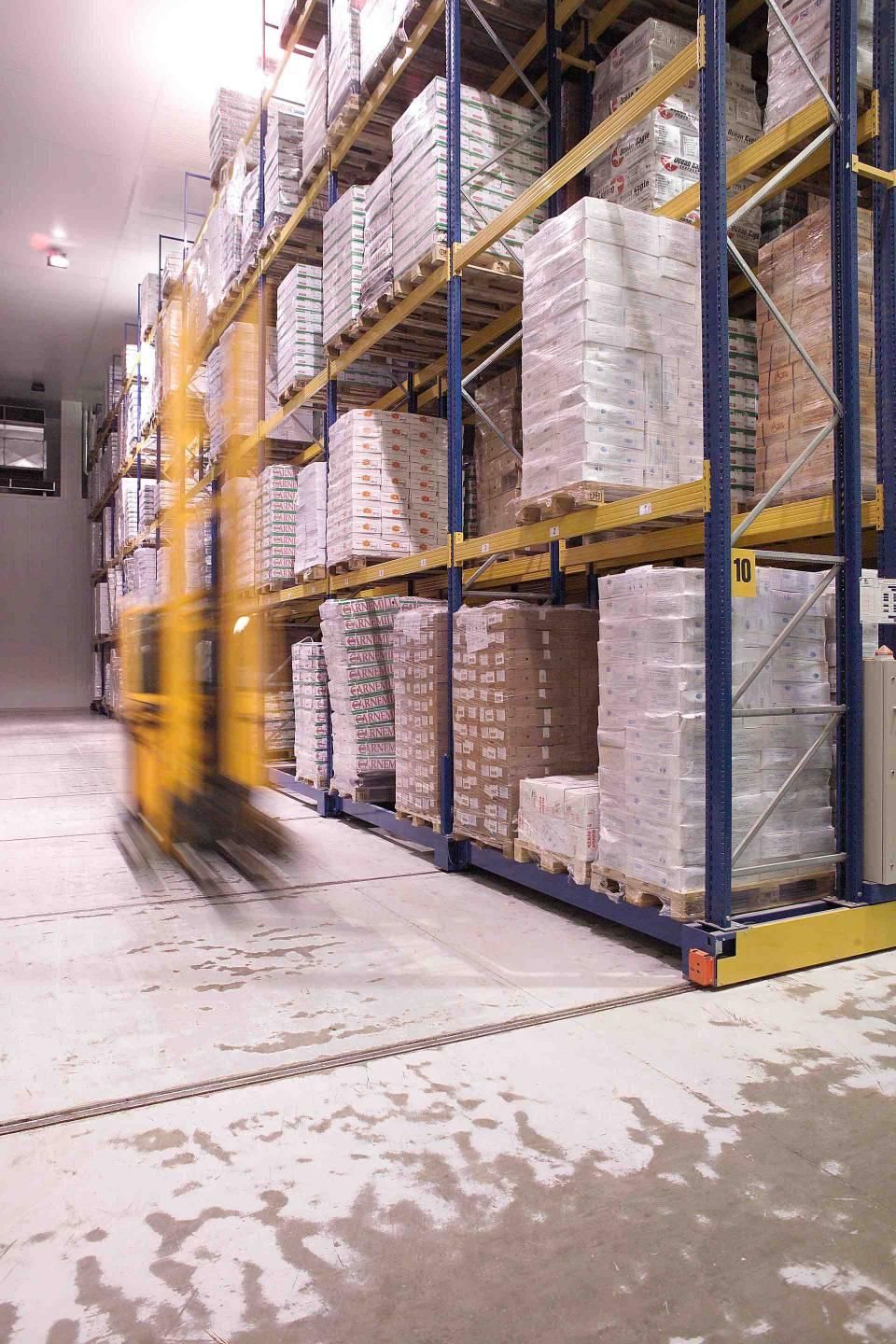

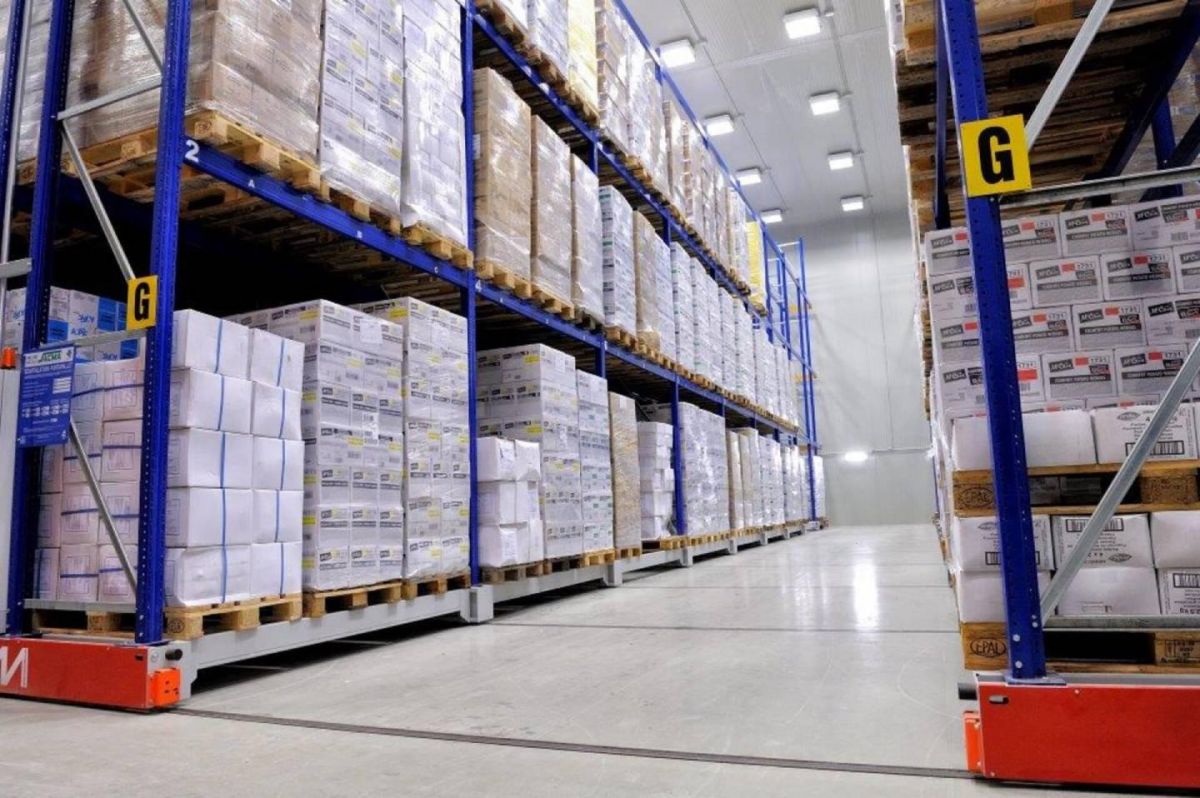

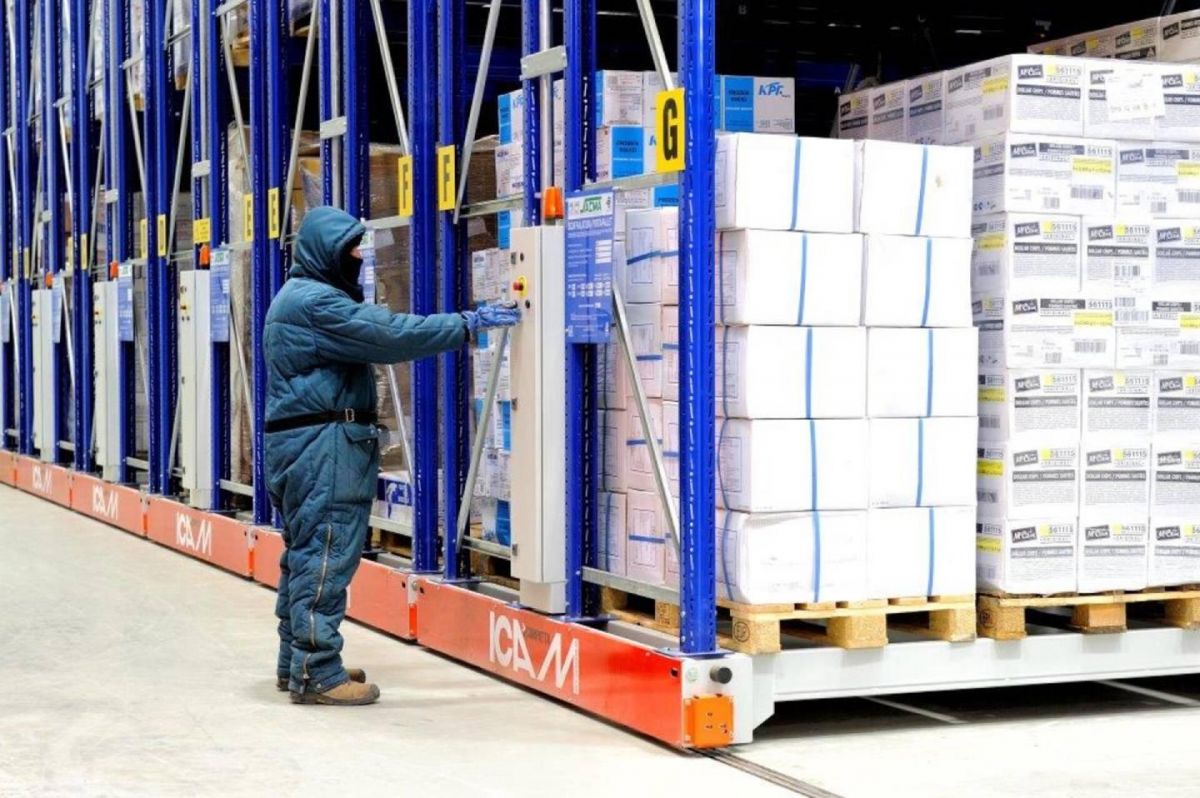

Cold room environments down to -30°C

Compatta is an excellent solution for cold rooms, offering benefits in both space optimization and energy efficiency. The mobile racking system reduces the cell’s overall volume while maintaining the same storage capacity or doubles the capacity within the same space. By drastically reducing empty space, it preserves uniform temperatures and minimizes thermal dispersion, leading to significant energy savings.

Smart Features For Every Need

Every detail matters. Compatta’s smart functionalities are designed to provide a practical answer to everyday warehouse challenges, enhancing operational flexibility and system safety, in any context.

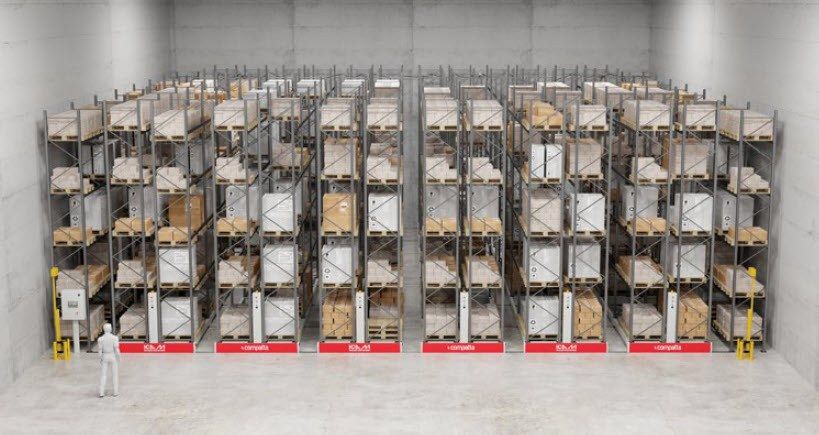

Relax: An advanced system that allows shelves to be spaced apart when the system is idle, improving ventilation in cold rooms or facilitating water flow in environments with fire protection systems.

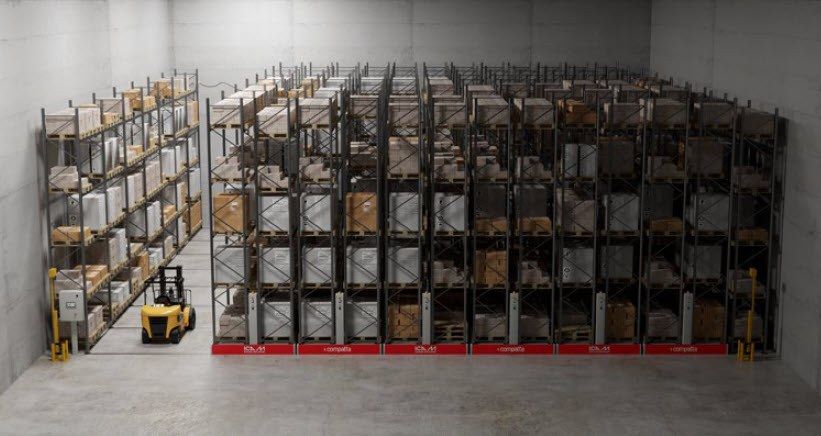

Lux: An automatic energy saving system where lights are automatically activated only in the aisle being used. In emergencies, full corridor illumination ensures maximum safety.

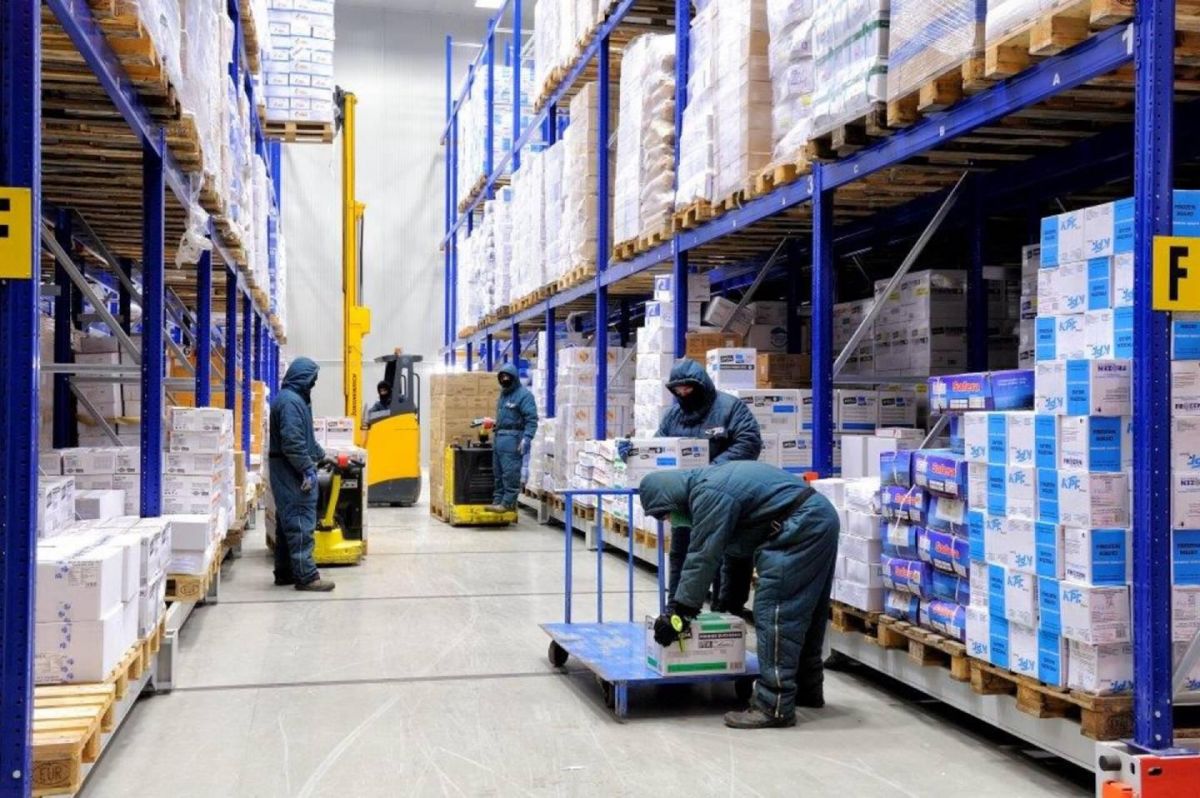

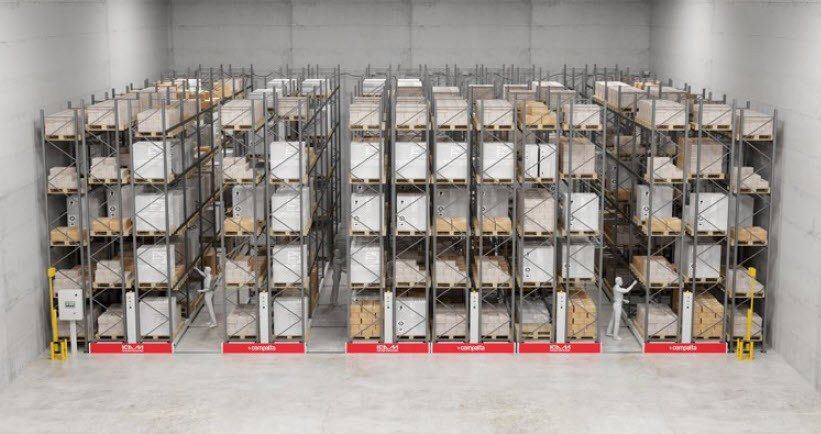

Picking: A solution that enables manual picking by simultaneously opening multiple person-wide aisles.

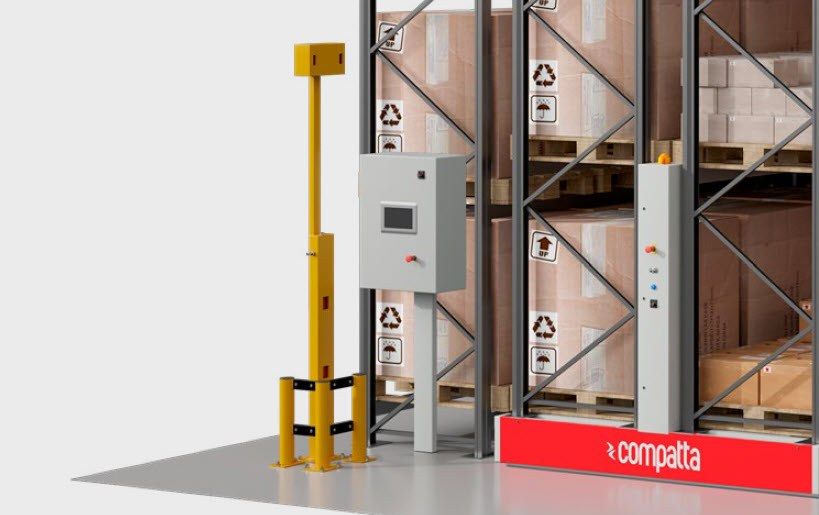

FLOW (ForkLift-Optimized Warehouse): An intelligent system that detects forklift movements, preventing mobile bases from operating until the area is clear and enabling safe operation consent.

Safety Devices

The protection of operators and materials is non-negotiable.

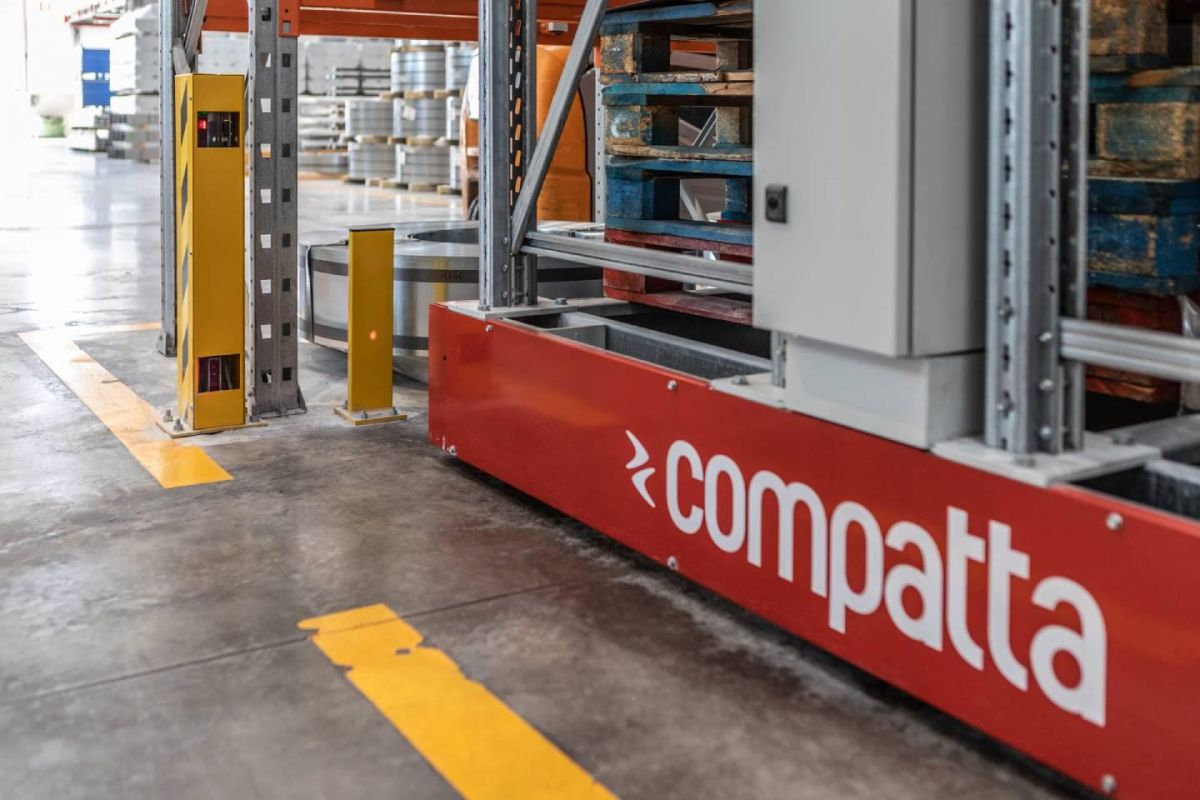

Photoelectric barriers monitor entries and exits; photo sensors along the mobile bases safely stop the system in the presence of obstacles. Manual handling requires explicit operator consent via dedicated buttons.

Management & Control Systems

The control and management system consists of a main PLC & EtherCAT connection to the electrical panels on board the mobile bases.

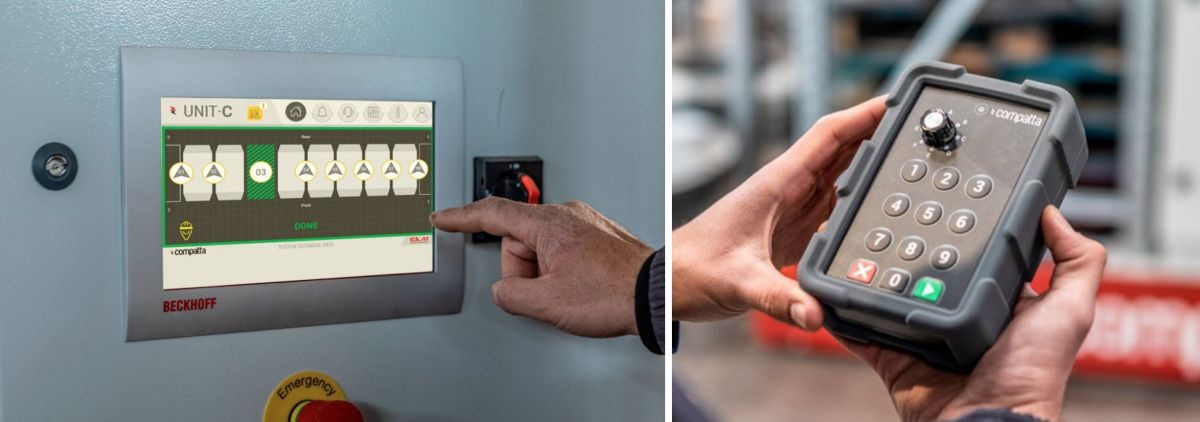

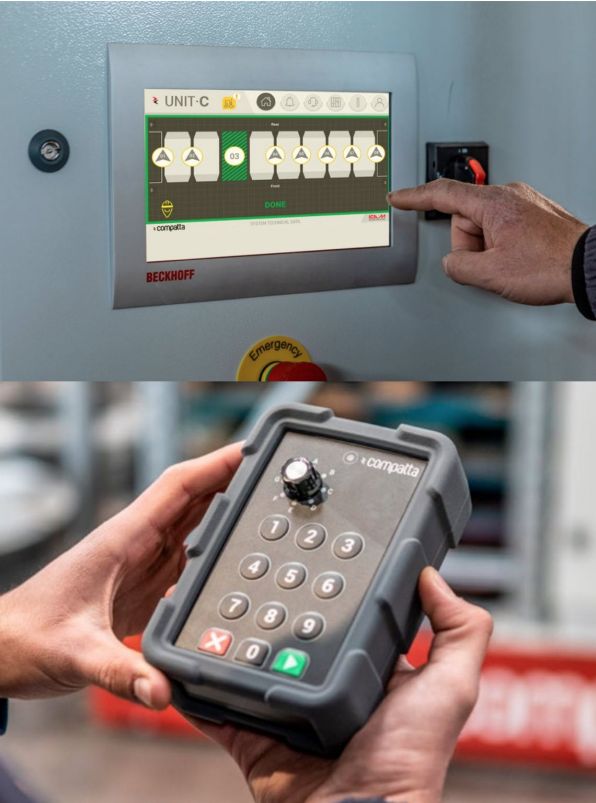

The operator interface (HMI) uses a 10" (25.4 cm) industrial PANEL PC with a simple and intuitive user interface equipped with numerous functions:

Real-time monitoring of system status and mobile bases
Alarm and warning management for proactive maintenance
Advanced control of mobile bases, activating the system's available features
Integrated remote assistance within the operator panel for quick interventions and remote diagnostics

With Compatta, managing the warehouse becomes simple, fast and secure, even remotely.

Thanks to the remote control, the desired aisle can be opened without disembarking the forklift, optimising working time and enhancing operational safety.

Each Compatta system is equipped with a remote control featuring:

Rotary selector to locate the specific sub-system
Numeric buttons to open the corresponding aisle

ICON Console

Entirely designed and developed by ICAM, ICON is a cutting-edge, web-based software solution, compliant with the latest technological standards and easily integrable with WMS and ERP systems.

Key feature of ICON:

Ground area management: Mapping and control of traditional racking
User management: Configuration of custom permissions and authorisations
Item management: Master data, search and advanced management
Storage unit management: Configuration, movement, and visualisation
Statistics and reports: Movement analysis, control reports and detailed inventory reports
Data backup: Ensuring uncompromised operational security
